Description

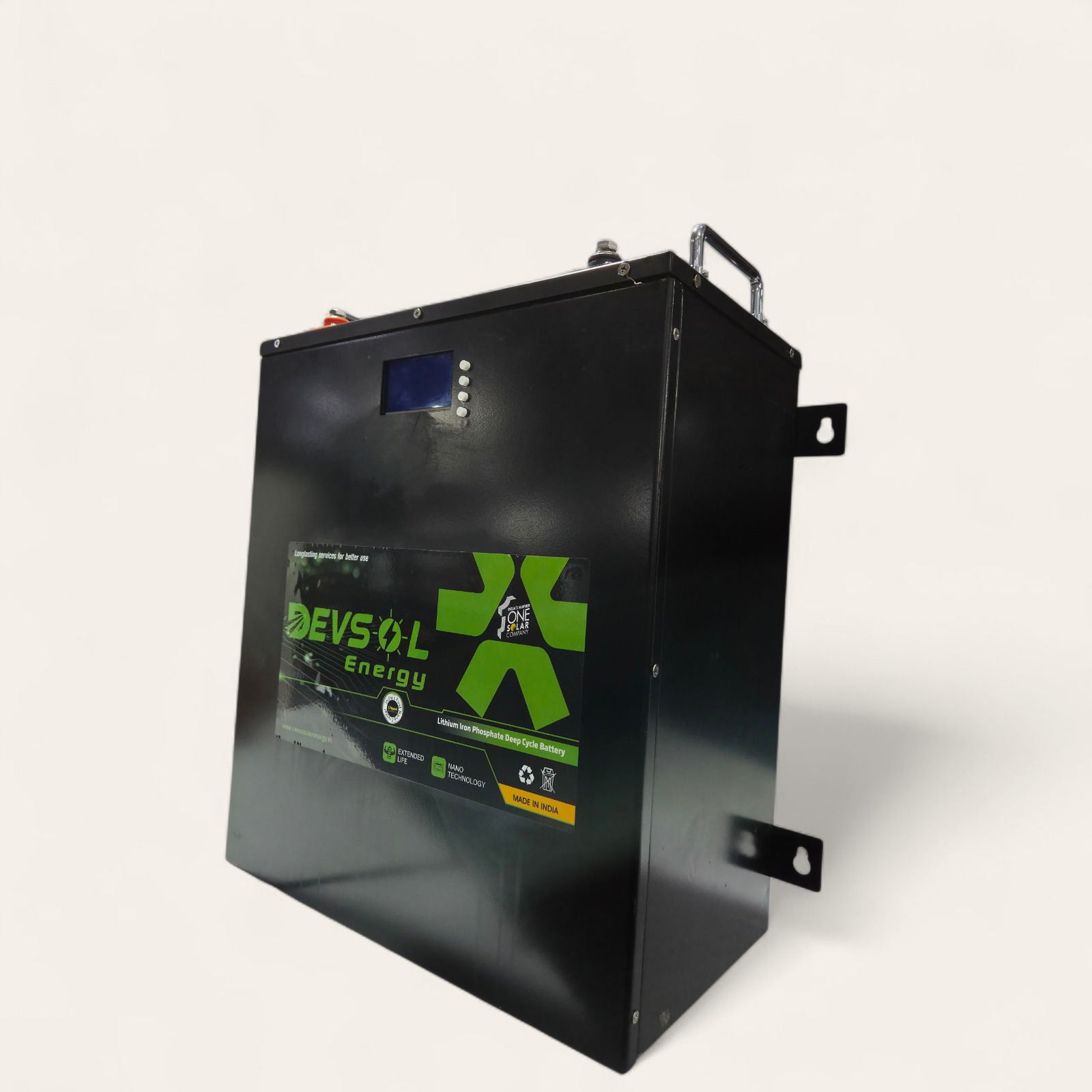

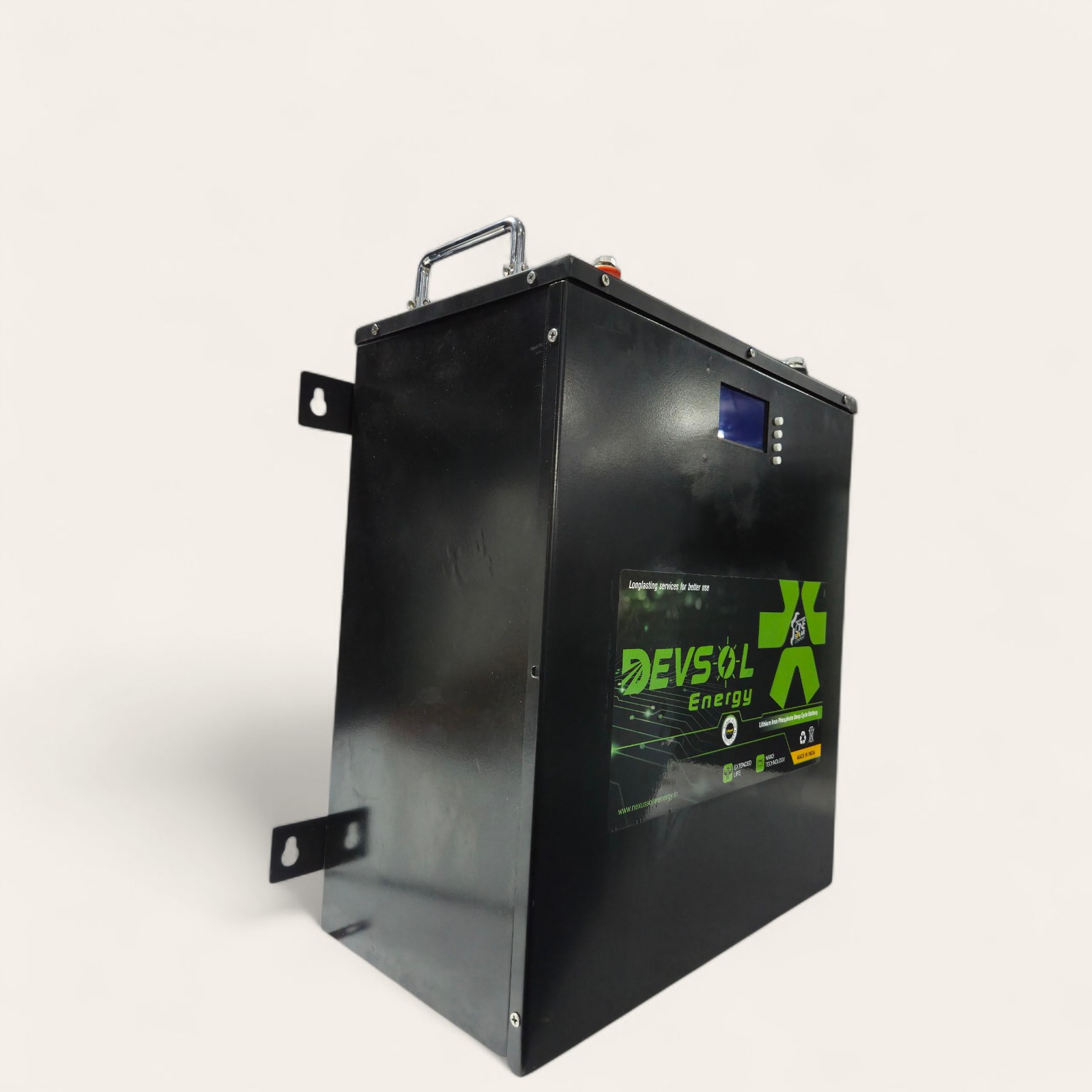

100AH 25.6V Lithium PO4 Pro Battery represents a leap forward in energy storage technology, offering high capacity, safety, and efficiency in a compact, lightweight package. Whether you’re enhancing your solar power setup,
Dev Sol PRO series LFP batteries are widely used in residential energy storage, small UPS system, photovoltaic off-grid base station, etc. It has excellent charge-discharge performance, long service life, high safety and reliability with portable modular installation, which is suitable for 19-inch cabinet or stack installation.
Key Features:High Capacity and Voltage:With a capacity of 100 amp-hours (AH) and a voltage of 25.6V, this battery provides substantial power for demanding applications, ensuring extended runtime and consistent performance.Long Lifespan:The Lithium PO4 Pro Battery is engineered for durability, offering a lifespan of over 6500 charge cycles at 80% depth of discharge (DoD), significantly outlasting traditional lead-acid batteries.Enhanced Safety:Featuring built-in Battery Management System (BMS) technology, this battery protects against overcharging, over-discharging, short circuits, and temperature fluctuations, ensuring safe and stable operation.Lightweight and Compact:Weighing significantly less than equivalent lead-acid batteries, the 100AH 25.6V Lithium PO4 Pro Battery is easy to install and transport, making it an ideal choice for mobile and space-constrained applications.Efficient Performance:With a high energy density and efficient charge/discharge rates, this battery minimizes energy loss and maximizes power output, enhancing the overall efficiency of your system.Eco-Friendly:Lithium Iron Phosphate batteries are more environmentally friendly compared to other battery types, featuring non-toxic, non-contaminating materials and a longer lifecycle, reducing the need for frequent replacements.
100Ah 51.2V Lithium Solar Battery
| Description | Particulars |
| Brand | Devsol Energy |
| Rated Voltage | 25.6V |
| Rated Capacity | 100Ah(C5,0.2Cto40.5V @25’C |
| Discharge Current(Max.) | 100A |
| Discharge End Voltage | 43.2V |
| Charge Current(Recomm.) | 20A |
| Charge Current(Max.) | 100A |
| Charge Voltage | 57.6+0.5V |
| Dimension(WxDxH)mm | 442.5×400.0×133.0(mm) |
| Typical Weight | 42.1Kg |
| Layout of Front Pannel | |
| Communication Ports | can/Rs485 |
| Communications in Parallel | Max 16 Modules in Parallel |
| Reset Key | Available |
| Terminal Size | M8(Screw Size) |
| LCD Screen | Available |
| Breaker | Standard |
| Maintenance Interface | Standard |
| Operation Environments | |
| Temperature Range | Discharge(-20 to 60’C), Charge(0 to +60’C), Storage(0 to 40’C) |
| Temperature Recommendation | Discharge(+15 to +35’C), Charge(+15 to +35’C), Storage(+15 to +35’C) |
| Humidity | 5 to 95% |
| Scalability |
